0x00 漏洞概述
S2-007的漏洞原理是在处理类型转换的错误时会存入错误到内存中，在后续调用流程中触发OGNL表达式注入。
影响版本：2.0.0 – 2.2.3
复现版本：2.2.3
官方issue地址：https://cwiki.apache.org/confluence/display/WW/S2-007
0x01 环境搭建
由于本漏洞发生在Bean中某个Property类型转换时，因此需要我们编写一个Action类：
import com.opensymphony.xwork2.ActionSupport;
public class LoginAction extends ActionSupport {
private String username;
private String password;
private int age;
public String getUsername() {
return username;
}
public String getPassword() {
return password;
}
public int getAge() {
return age;
}
public void setUsername(String username) {
this.username = username;
}
public void setPassword(String password) {
this.password = password;
}
public void setAge(int age) {
this.age = age;
}
public String execute() throws Exception{
if (this.username == null || this.password == null) {
return "failed";
}
if (this.username.equals("admin") && this.password.equals("admin")) {
return "success";
}
return "failed";
}
}
接着分别编写两个JSP文件，index.jsp用于模拟用户登陆后的界面，login.jsp用户模拟登陆界面。
index.jsp：
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Admin Console</title>
</head>
<body>
Hello admin
</body>
</html>
login.jsp：
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="s" uri="/struts-tags" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>S2-007</title>
</head>
<body>
<h2>S2-007 Demo</h2>
<p>link: <a href="https://struts.apache.org/docs/s2-007.html">https://struts.apache.org/docs/s2-007.html</a></p>
<s:form action="login">
<s:textfield name="username" label="username" />
<s:textfield name="password" label="password" />
<s:textfield name="age" label="age" />
<s:submit></s:submit>
</s:form>
</body>
</html>
接着编写struts.xml用于定义路由以及成功、失败、错误时的渲染页面：
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
<package name="st2-demo" extends="struts-default">
<action name="login" class="LoginAction">
<result name="success">index.jsp</result>
<result name="failed">login.jsp</result>
<result name="input">login.jsp</result>
</action>
</package>
</struts>

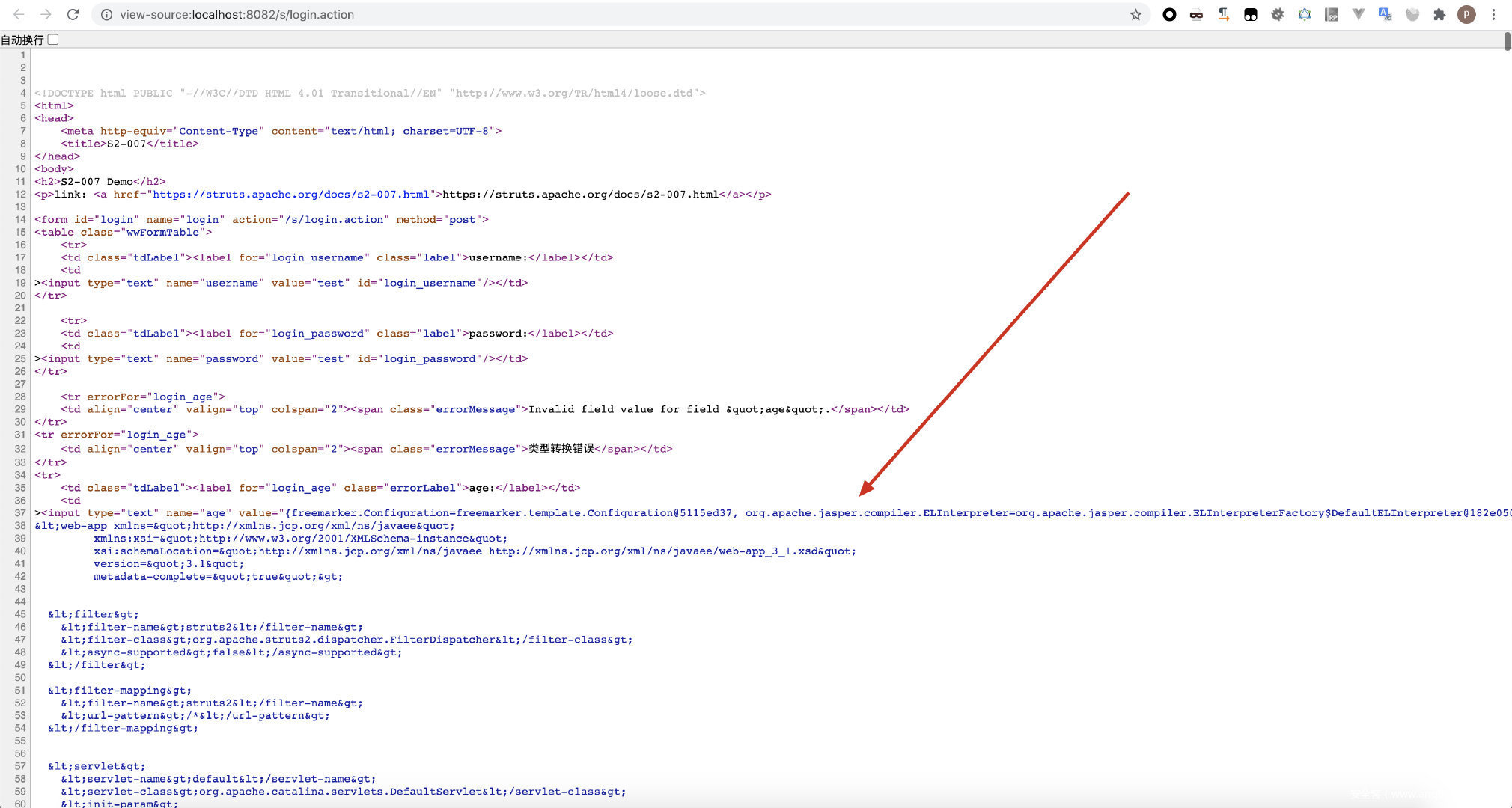

随后配置一下WEB服务器，部署后通过'+(#application)+'这个Payload测试是否回显相关信息：
0x02 漏洞分析
2.0 上报错误
之前介绍过Struts2存在着许多拦截器用于在请求真正执行到execute方法前的封装，其中就有一个ParametersInterceptor，在这里会将请求中的参数赋到当前请求对应的Bean上，请求中的参数一定是String类型的，但是Bean中的数据类型并不一定是String类型的，这个时候会自动进行一个类型转换，当转换发生错误时，会将错误进行记录。
比如aaa必然不可能被转为int类型，但如果是123（String）还是可以被转为int类型的，具体转换的逻辑我就不在这展开记录了，本文的重点是错误记录部分。
相关代码：
com.opensymphony.xwork2.conversion.impl.XWorkConverter#handleConversionException
protected void handleConversionException(Map<String, Object> context, String property, Object value, Object object) {
if (context != null && Boolean.TRUE.equals(context.get("report.conversion.errors"))) {
String realProperty = property;
String fullName = (String)context.get("conversion.property.fullName");
if (fullName != null) {
realProperty = fullName;
}
Map<String, Object> conversionErrors = (Map)context.get("com.opensymphony.xwork2.ActionContext.conversionErrors");
if (conversionErrors == null) {
conversionErrors = new HashMap();
context.put("com.opensymphony.xwork2.ActionContext.conversionErrors", conversionErrors);
}
((Map)conversionErrors).put(realProperty, value);
}
}
在类型转换过程中触发的异常会通过handleConversionException方法进行搜集，但前提是report.conversion.errors这个键必须为true，默认情况下这个键是为true的。
随后会获取转换出错的property名称以及com.opensymphony.xwork2.ActionContext.conversionErrors这个Map并对其进行初始化，最终将property名称以及其对应的值放入这个Map中。
相关调用栈：
handleConversionException:438, XWorkConverter (com.opensymphony.xwork2.conversion.impl)
convertValue:338, XWorkConverter (com.opensymphony.xwork2.conversion.impl)
convertValue:39, OgnlTypeConverterWrapper (com.opensymphony.xwork2.ognl)
getConvertedType:1060, OgnlRuntime (ognl)
getConvertedTypes:1077, OgnlRuntime (ognl)
getConvertedMethodAndArgs:1103, OgnlRuntime (ognl)
getAppropriateMethod:1189, OgnlRuntime (ognl)
callAppropriateMethod:1203, OgnlRuntime (ognl)
setMethodValue:1474, OgnlRuntime (ognl)
setPossibleProperty:85, ObjectPropertyAccessor (ognl)
setProperty:162, ObjectPropertyAccessor (ognl)
setProperty:27, ObjectAccessor (com.opensymphony.xwork2.ognl.accessor)
setProperty:2245, OgnlRuntime (ognl)
setProperty:77, CompoundRootAccessor (com.opensymphony.xwork2.ognl.accessor)
setProperty:2245, OgnlRuntime (ognl)
setValueBody:127, ASTProperty (ognl)
evaluateSetValueBody:220, SimpleNode (ognl)
setValue:301, SimpleNode (ognl)
setValue:737, Ognl (ognl)
setValue:209, OgnlUtil (com.opensymphony.xwork2.ognl)
trySetValue:173, OgnlValueStack (com.opensymphony.xwork2.ognl)
setValue:160, OgnlValueStack (com.opensymphony.xwork2.ognl)
setValue:151, OgnlValueStack (com.opensymphony.xwork2.ognl)
setParameters:288, ParametersInterceptor (com.opensymphony.xwork2.interceptor)
doIntercept:199, ParametersInterceptor (com.opensymphony.xwork2.interceptor)
intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
doIntercept:207, ParametersInterceptor (com.opensymphony.xwork2.interceptor)
intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:190, StaticParametersInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:75, MultiselectInterceptor (org.apache.struts2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:94, CheckboxInterceptor (org.apache.struts2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:243, FileUploadInterceptor (org.apache.struts2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:100, ModelDrivenInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:141, ScopedModelDrivenInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:270, DebuggingInterceptor (org.apache.struts2.interceptor.debugging)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:145, ChainingInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
doIntercept:171, PrepareInterceptor (com.opensymphony.xwork2.interceptor)
intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:176, I18nInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:164, ServletConfigInterceptor (org.apache.struts2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:190, AliasInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:187, ExceptionMappingInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
execute:52, StrutsActionProxy (org.apache.struts2.impl)
serviceAction:498, Dispatcher (org.apache.struts2.dispatcher)
doFilter:434, FilterDispatcher (org.apache.struts2.dispatcher)
internalDoFilter:239, ApplicationFilterChain (org.apache.catalina.core)
doFilter:206, ApplicationFilterChain (org.apache.catalina.core)
invoke:219, StandardWrapperValve (org.apache.catalina.core)
invoke:106, StandardContextValve (org.apache.catalina.core)
invoke:501, AuthenticatorBase (org.apache.catalina.authenticator)
invoke:142, StandardHostValve (org.apache.catalina.core)
invoke:79, ErrorReportValve (org.apache.catalina.valves)
invoke:610, AbstractAccessLogValve (org.apache.catalina.valves)
invoke:88, StandardEngineValve (org.apache.catalina.core)
service:516, CoyoteAdapter (org.apache.catalina.connector)
process:1086, AbstractHttp11Processor (org.apache.coyote.http11)
process:659, AbstractProtocol$AbstractConnectionHandler (org.apache.coyote)
process:223, Http11NioProtocol$Http11ConnectionHandler (org.apache.coyote.http11)
doRun:1558, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)
run:1515, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)
runWorker:1149, ThreadPoolExecutor (java.util.concurrent)
run:624, ThreadPoolExecutor$Worker (java.util.concurrent)
run:61, TaskThread$WrappingRunnable (org.apache.tomcat.util.threads)
run:748, Thread (java.lang)
2.1 错误处理
前面说到，在ParametersInterceptor进行类型转换时产生的错误会被存入com.opensymphony.xwork2.ActionContext.conversionErrors中。
在后续流程中，会使用ConversionErrorInterceptor对前面产生的错误进行处理：
com.opensymphony.xwork2.interceptor.ConversionErrorInterceptor#intercept
public String intercept(ActionInvocation invocation) throws Exception {
ActionContext invocationContext = invocation.getInvocationContext();
Map<String, Object> conversionErrors = invocationContext.getConversionErrors();
ValueStack stack = invocationContext.getValueStack();
HashMap<Object, Object> fakie = null;
Iterator i$ = conversionErrors.entrySet().iterator();
while(i$.hasNext()) {
Entry<String, Object> entry = (Entry)i$.next();
String propertyName = (String)entry.getKey();
Object value = entry.getValue();
if (this.shouldAddError(propertyName, value)) {
String message = XWorkConverter.getConversionErrorMessage(propertyName, stack);
Object action = invocation.getAction();
if (action instanceof ValidationAware) {
ValidationAware va = (ValidationAware)action;
va.addFieldError(propertyName, message);
}
if (fakie == null) {
fakie = new HashMap();
}
fakie.put(propertyName, this.getOverrideExpr(invocation, value));
}
}
if (fakie != null) {
stack.getContext().put("original.property.override", fakie);
invocation.addPreResultListener(new PreResultListener() {
public void beforeResult(ActionInvocation invocation, String resultCode) {
Map<Object, Object> fakie = (Map)invocation.getInvocationContext().get("original.property.override");
if (fakie != null) {
invocation.getStack().setExprOverrides(fakie);
}
}
});
}
return invocation.invoke();
}
这里首先通过getConversionErrors获取到所有的错误，随后通过while循环对错误进行处理，首先获取其key&value，接着通过shouldAddError判断value或propertyName是否为空，如果不为空则继续进入if的代码块中。
在if的代码块中会获取到这个错误对应的message以及当前请求对应的Action，并在Action实现了ValidationAware类的情况下调用其addFielderror方法，但是这都不是重点，重点在下面的fakie.put。
注意看，这里调用了getOverrideExpr方法对value进行处理：
protected Object getOverrideExpr(ActionInvocation invocation, Object value) {
ValueStack stack = invocation.getStack();
String var4;
try {
stack.push(value);
var4 = "'" + stack.findValue("top", String.class) + "'";
} finally {
stack.pop();
}
return var4;
}
这里首先将value压入栈中，随后通过top语法取出value并在左右两侧进行一个'的拼接，最后通过pop方法取出前面压入栈中的value，并且将上面拼接完毕的value返回，此时我们的Payload由'+(#application)+'转为了''+(#application)+''，可以发现左右两侧的单引号被我们人为闭合了，这里为后面的漏洞利用埋下了一个伏笔。
在value被拼接完后会被放入fakie中，最后在invocation中添加了一个PreResultListener，这里取出了前面的fakie，并且会调用setExprOverrides对其进行处理：
public void setExprOverrides(Map<Object, Object> overrides) {
if (this.overrides == null) {
this.overrides = overrides;
} else {
this.overrides.putAll(overrides);
}
}
setExprOverrides会将传入的overrides赋到this.overrides这个属性上，最后会在模板渲染时，通过lookupForOverrides方法从this.overrides中取出某个键对应的值。
private String lookupForOverrides(String expr) {
if (this.overrides != null && this.overrides.containsKey(expr)) {
expr = (String)this.overrides.get(expr);
}
return expr;
}

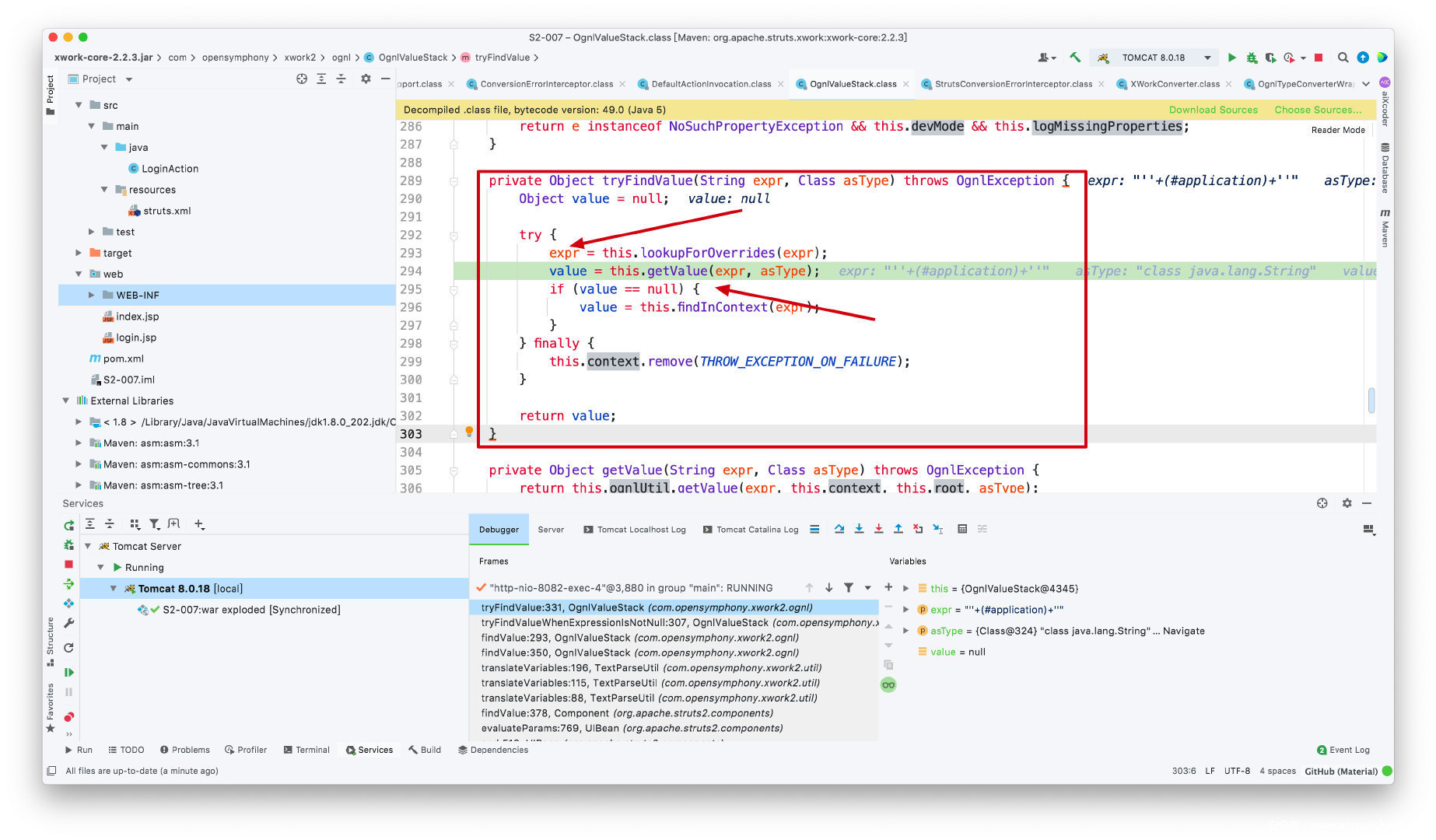

最终会调用getValue方法处理取出来的值，getValue的过程中会触发OGNL表达式解析，这个在S2-001中有过相关介绍，这里就不重复记录了。
完整调用栈：
tryFindValue:331, OgnlValueStack (com.opensymphony.xwork2.ognl)
tryFindValueWhenExpressionIsNotNull:307, OgnlValueStack (com.opensymphony.xwork2.ognl)
findValue:293, OgnlValueStack (com.opensymphony.xwork2.ognl)
findValue:350, OgnlValueStack (com.opensymphony.xwork2.ognl)
translateVariables:196, TextParseUtil (com.opensymphony.xwork2.util)
translateVariables:115, TextParseUtil (com.opensymphony.xwork2.util)
translateVariables:88, TextParseUtil (com.opensymphony.xwork2.util)
findValue:378, Component (org.apache.struts2.components)
evaluateParams:769, UIBean (org.apache.struts2.components)
end:510, UIBean (org.apache.struts2.components)
doEndTag:42, ComponentTagSupport (org.apache.struts2.views.jsp)
_jspx_meth_s_005ftextfield_005f2:18, login_jsp (org.apache.jsp)
_jspx_meth_s_005fform_005f0:18, login_jsp (org.apache.jsp)
_jspService:14, login_jsp (org.apache.jsp)
service:70, HttpJspBase (org.apache.jasper.runtime)
service:725, HttpServlet (javax.servlet.http)
service:431, JspServletWrapper (org.apache.jasper.servlet)
serviceJspFile:396, JspServlet (org.apache.jasper.servlet)
service:340, JspServlet (org.apache.jasper.servlet)
service:725, HttpServlet (javax.servlet.http)
internalDoFilter:291, ApplicationFilterChain (org.apache.catalina.core)
doFilter:206, ApplicationFilterChain (org.apache.catalina.core)
doFilter:52, WsFilter (org.apache.tomcat.websocket.server)
internalDoFilter:239, ApplicationFilterChain (org.apache.catalina.core)
doFilter:206, ApplicationFilterChain (org.apache.catalina.core)
invoke:721, ApplicationDispatcher (org.apache.catalina.core)
processRequest:466, ApplicationDispatcher (org.apache.catalina.core)
doForward:391, ApplicationDispatcher (org.apache.catalina.core)
forward:318, ApplicationDispatcher (org.apache.catalina.core)
doExecute:157, ServletDispatcherResult (org.apache.struts2.dispatcher)
execute:186, StrutsResultSupport (org.apache.struts2.dispatcher)
executeResult:373, DefaultActionInvocation (com.opensymphony.xwork2)
invoke:277, DefaultActionInvocation (com.opensymphony.xwork2)
doIntercept:263, ValidationInterceptor (com.opensymphony.xwork2.validator)
doIntercept:68, AnnotationValidationInterceptor (org.apache.struts2.interceptor.validation)
intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:133, ConversionErrorInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
doIntercept:207, ParametersInterceptor (com.opensymphony.xwork2.interceptor)
intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
doIntercept:207, ParametersInterceptor (com.opensymphony.xwork2.interceptor)
intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:190, StaticParametersInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:75, MultiselectInterceptor (org.apache.struts2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:94, CheckboxInterceptor (org.apache.struts2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:243, FileUploadInterceptor (org.apache.struts2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:100, ModelDrivenInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:141, ScopedModelDrivenInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:270, DebuggingInterceptor (org.apache.struts2.interceptor.debugging)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:145, ChainingInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
doIntercept:171, PrepareInterceptor (com.opensymphony.xwork2.interceptor)
intercept:98, MethodFilterInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:176, I18nInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:164, ServletConfigInterceptor (org.apache.struts2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:190, AliasInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
intercept:187, ExceptionMappingInterceptor (com.opensymphony.xwork2.interceptor)
invoke:248, DefaultActionInvocation (com.opensymphony.xwork2)
execute:52, StrutsActionProxy (org.apache.struts2.impl)
serviceAction:498, Dispatcher (org.apache.struts2.dispatcher)
doFilter:434, FilterDispatcher (org.apache.struts2.dispatcher)
internalDoFilter:239, ApplicationFilterChain (org.apache.catalina.core)
doFilter:206, ApplicationFilterChain (org.apache.catalina.core)
invoke:219, StandardWrapperValve (org.apache.catalina.core)
invoke:106, StandardContextValve (org.apache.catalina.core)
invoke:501, AuthenticatorBase (org.apache.catalina.authenticator)
invoke:142, StandardHostValve (org.apache.catalina.core)
invoke:79, ErrorReportValve (org.apache.catalina.valves)
invoke:610, AbstractAccessLogValve (org.apache.catalina.valves)
invoke:88, StandardEngineValve (org.apache.catalina.core)
service:516, CoyoteAdapter (org.apache.catalina.connector)
process:1086, AbstractHttp11Processor (org.apache.coyote.http11)
process:659, AbstractProtocol$AbstractConnectionHandler (org.apache.coyote)
process:223, Http11NioProtocol$Http11ConnectionHandler (org.apache.coyote.http11)
doRun:1558, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)
run:1515, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)
runWorker:1149, ThreadPoolExecutor (java.util.concurrent)
run:624, ThreadPoolExecutor$Worker (java.util.concurrent)
run:61, TaskThread$WrappingRunnable (org.apache.tomcat.util.threads)
run:748, Thread (java.lang)
分析到这里，其实可以发现一个问题，首先网上流传的Payload，也就是’+(#application)+’，这里可以换种容易理解的写法，即' + #{application} + '，这样也许大家会更容易分清楚其中OGNL表达式的部分。
0x03 修复方案
S2-007的修复方式也是十分的简单粗暴，废话不多说，直接看DIFF：
可以发现，修复方式十分粗暴，就是通过StringEscapeUtils.escapeJava对其进行了一个转义，并且将原先左右两侧的单引号换为了双引号，此时我们则没有办法逃逸这左右两侧的引号了，因为"会被转义为\"。
0x04 一个小问题
在最开始的时候写了，我测试的时候发现某些低版本用不了，这是因为在某些低版本中把XWorkConverter这个类给去掉了，因此没有上报错误的这么一个流程了，自然也就无法产生后续错误处理时的漏洞。所以如果想稳定复现，最好还是使用2.2.3版本进行复现。
0x05 吐槽
在分析这个漏洞时自然是参考了网上的一些文章，比如：
https://github.com/xhycccc/Struts2-Vuln-Demo/tree/master/s2-007
https://xz.aliyun.com/t/2684
其中Github中的参考链接是第二个链接，然而实际上第二篇文章的漏洞分析部分有着些许问题，比如这个漏洞压根就不需要编写什么validate.xml，并且实际上触发OGNL表达式的也不是invoke这里，而是后续的调用中。
但这样错误的文章，也还是被抄来抄去的，这里只作吐槽，希望大家复现漏洞时能够在真正了解漏洞之后再去COPY，否则很容易被没复现过这个漏洞的人误解。
（来源：安全客）
.jpg)
.png)
发表评论
